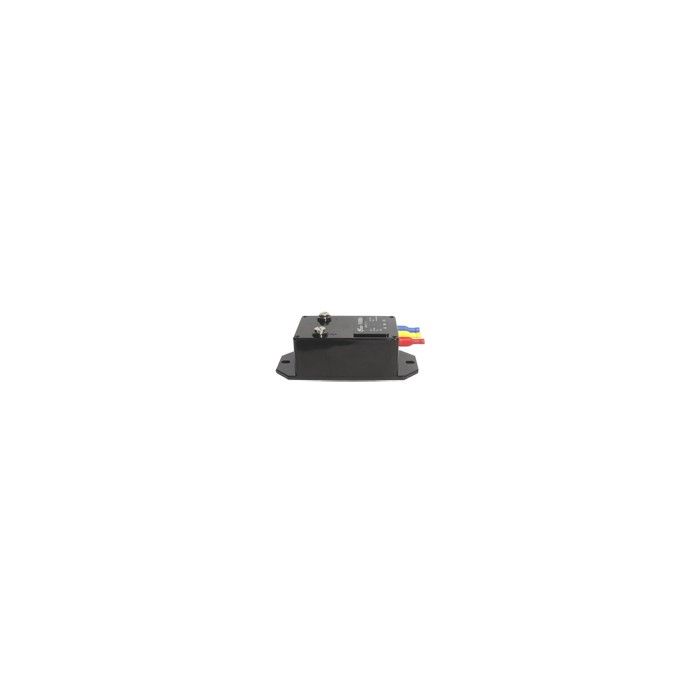

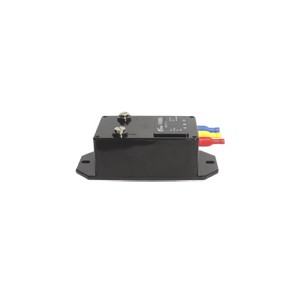

Sensor Module

CHY-100V、200V、300V、400V、500V

Description

The SENSOR Module CHY-V is an AC voltage transducer to measure 100V…500V (50Hz/400Hz)AC voltages with a galvanic isolation between the primary and secondary circuits. The output of thetransducer is a standard DC signal.

AC Voltage Transducer（Output 0…20mA）:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

V_N（V）

I_M（mA）

X（%）

Vc（V）

mm

CHY-100V/A0

100

0…20

±0.5%

15~24

Terminals

CHY-200V/A0

200

CHY-300V/A0

300

CHY-400V/A0

400

CHY-500V/A0

500

AC Voltage Transducer（Output 4…20mA）:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Aperture

V_N（V）

I_M（mA）

X（%）

Vc（V）

mm

CHY-100V/A1

100

4…20

±0.5%

15~24

Terminals

CHY-200V/A1

200

CHY-300V/A1

300

CHY-400V/A1

400

CHY-500V/A1

500

AC Voltage Transducer（Output 0…5V）:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHY-100V/V0

100

0…5

±0.5%

15~24

Terminals

CHY-200V/V0

200

CHY-300V/V0

300

CHY-400V/V0

400

CHY-500V/V0

500

AC Voltage Transducer（Output 1…5V）:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHY-100V/V1

100

1…5

±0.5%

15~24

Terminals

CHY-200V/V1

200

CHY-300V/V1

300

CHY-400V/V1

400

CHY-500V/V1

500

Specifications:

Principle

Transducer

Input voltage

100V…500V（AC）

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V（DC）

Frequency

50Hz（400Hz）

Accuracy

±0.5%

Response time

<0.35S

Linearity

<0.5%

Supply voltage

15V…24V（±5%）

Consumption

30mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

Dimensions(mm) & Connection:
