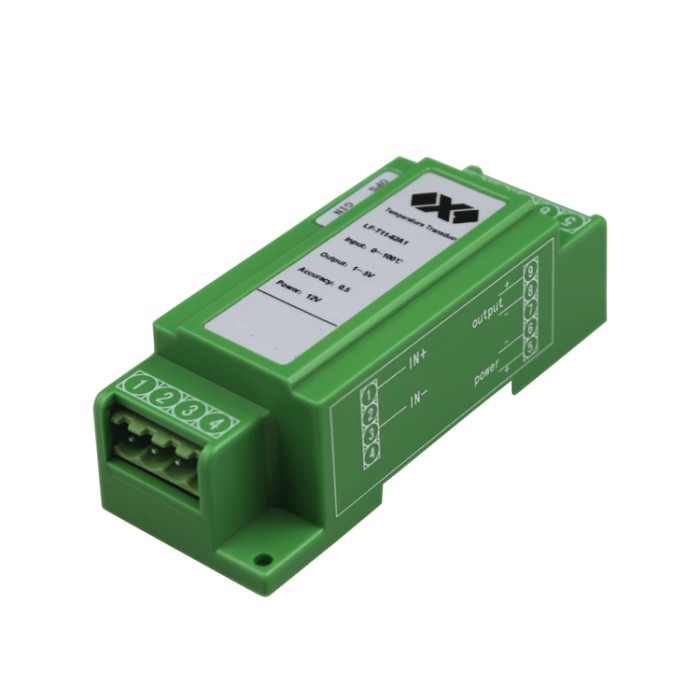

SA1 Temperature Transducer

*Transforms the measured temperature of the environment into the 1-way standard DC voltage or DC current output according to the linear proportion
*Low power consumption, high reliability
*Excellent anti-interference ability
*Contact terminal insert，standard din rail(35mm) mounting
*Small size, dimension(mm): 95(L)×37(W)×32(H）

Specification：

*Standards：IEC688:1992 QB/LF2007-1

*Input Range：0~100℃

*Accuracy Grade：≤0.5%.F.S

*Power Consumption：≤0.5VA

*Isolation Resistance：≥20MΩ(DC500V)

*Response Time：≤350mS

*Working Environment：-10℃~50℃，20%~90% without condensation

*Storage Environment：-40℃~70℃，20%~95% without condensation

Model：

Model Explanation1: LF-T11-62A1-0.5/0~100℃

Explanation: this product is a 0~100℃ input range, 1~5V output, 12V power supply, A1 style temperature transducer.

Dimension：

Connection:
