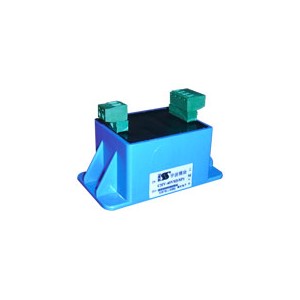

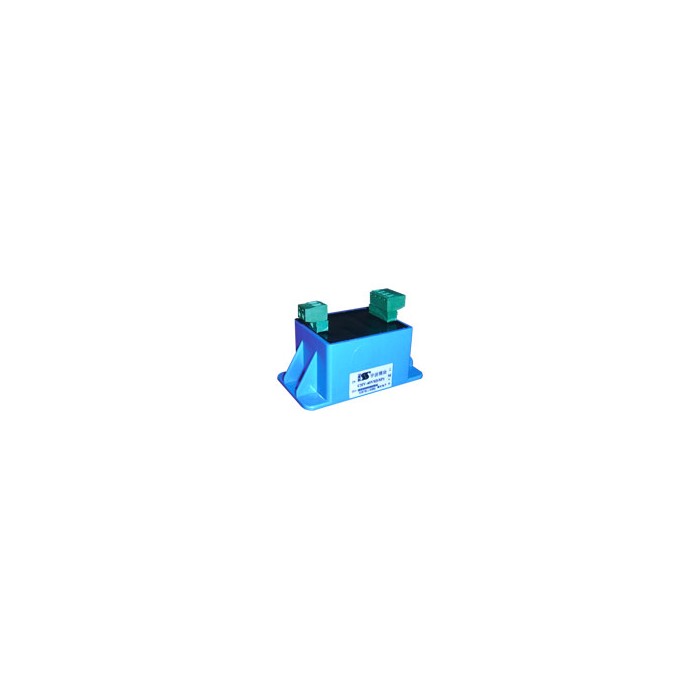

CHV-50VS、100VS、200VS、400VS、600VS Closed-loop Hall voltage Transducer

Description

The SENSOR Module CHV-50VS…600VS is a closed loop Hall voltage sensor to measure 50…600V DC, AC or pulsed voltages with a galvanic isolation between the primary and secondary circuits.

Closed-loop Hall Voltage Sensor:

Type

Nominal voltage

Output voltage

Accuracy

Supply voltage

Aperture

V_N（V）

V_M（V）

X（%）

Vc（V）

mm

CHV-50VS

50

5

±1.0%

±12~15

Terminals

CHV-100VS

100

CHV200VS

200

CHV-400VS

400

CHV-600VS

600

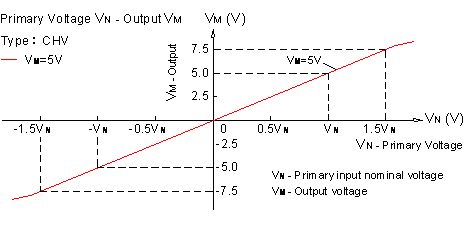

Specifications:

Principle

Closed loop Hall effect principle

Input voltage

50V…600V（DC、AC、Pulsed voltage）

Output

5V

Frequency

DC~20KHz

Accuracy

±1.0%

Response time

40μS

Linearity

<0.1%

Supply voltage

±12V~15V（±5%）

Consumption

35mA

Isolation voltage

Between primary and secondary circuit: 2.5KV RMS/50Hz/1min.

Operating temp.

-25℃ …+70℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

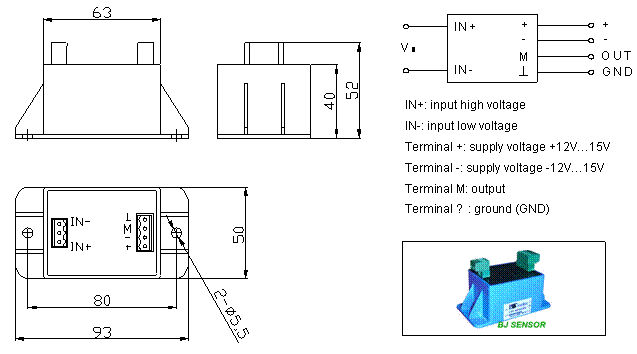

Dimensions(mm) & Connection:

Typical Applications:
