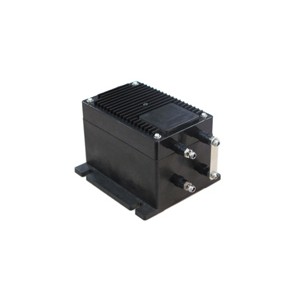

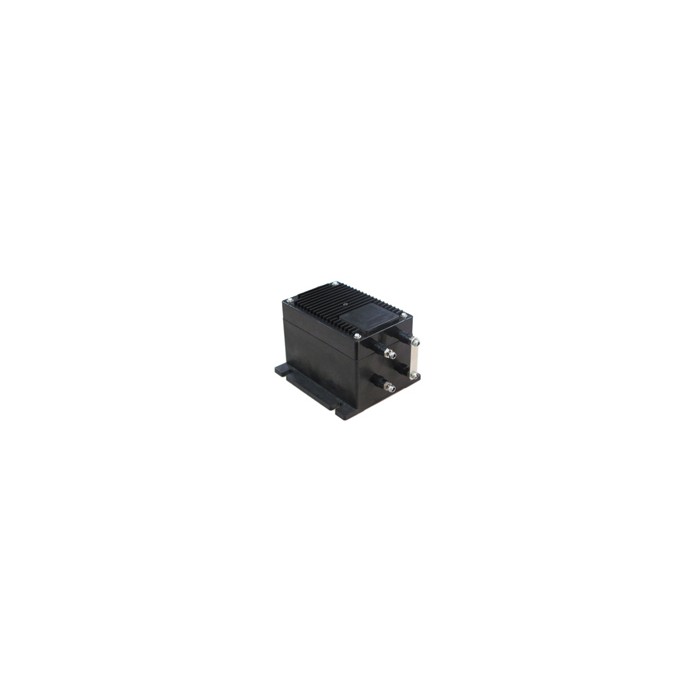

SENSOR MODULE  CHV-1KV~5KV

The SENSOR Module CHV-1KV~5KV is a closed loop Hall voltage sensor to measure 1000V…5000V DC, AC

or pulsed voltages with a galvanic isolation between the primary and secondary circuits.

Closed-loop Hall Voltage Sensor:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Connection

V_N（V）

I_M（mA）

X（%）

Vc（V）

Input

CHV-1KV

1000

80

±0.5%

±15~24

Terminals

CHV-3KV

3000

CHV-5KV

5000

Specifications:

Principle

Closed loop Hall effect principle

Input voltage

1000…5000V (DC、AC、Pulsed voltage）

Output current

80mA

Frequency

——

Accuracy

±0.5%

Response time

500μS

Linearity

<0.1%

Supply voltage

±15~24V（±5%）

Consumption

30mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 10KV RMS/50Hz/1min.

Operating temp.

-25…+70℃

Mounting on

Fastening on panel

Applications

Power supplies, welding machines, converters, industry auto-control, motor drives,

For industry

electronic power system, railways, rectifiers systems etc.

Dimensions（mm）：
