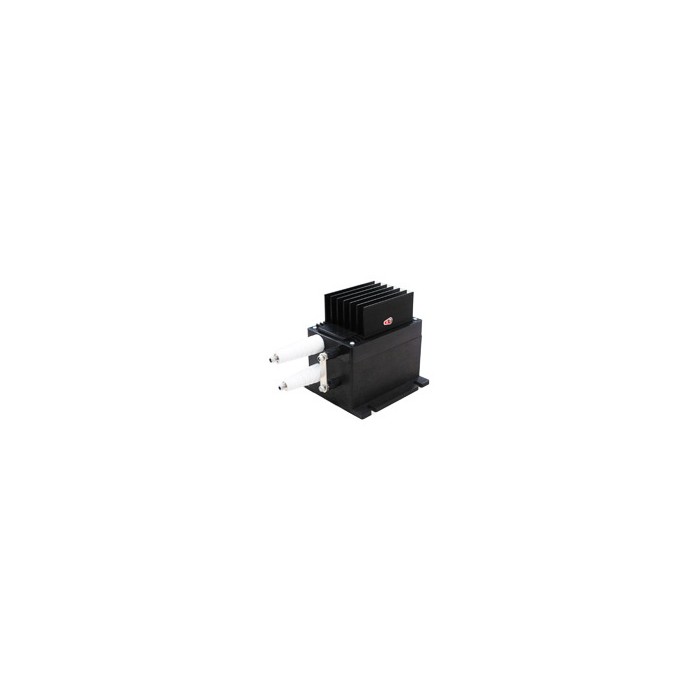

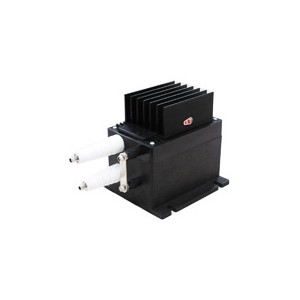

SENSOR MODULE  CHV-6KV~20KV

The SENSOR Module CHV-6KV~20KV is a closed loop Hall voltage sensor to measure 6000V…20,000V DC, AC

or pulsed voltages with a galvanic isolation between the primary and secondary circuits.

Closed-loop Hall Voltage Sensor:

Type

Nominal voltage

Output current

Accuracy

Supply voltage

Connection

V_N（V）

I_M（mA）

X（%）

Vc（V）

Input

CHV-6KV

6000

80

±0.5%

±15~24

Terminals

CHV-7KV

7000

CHV-8KV

8000

CHV-9KV

9000

CHV-10KV

10000

80

±0.5%

±15~24

Terminals

CHV-12KV

12000

CHV-15KV

15000

CHV-20KV

20000

80

±0.5%

±15~24

Terminals

Specifications:

Principle

Closed loop Hall effect principle

Input voltage

6000…20,000V (DC、AC、Pulsed voltage）

Output current

80mA

Frequency

——

Accuracy

±0.5%

Response time

500μS

Linearity

<0.1%

Supply voltage

±15~24V（±5%）

Consumption

80mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 15KV~25KV RMS/50Hz/1min.

Operating temp.

-25…+70℃

Mounting on

Fastening on panel

Applications

Power supplies, welding machines, converters, industry auto-control, motor drives,

For industry

electronic power system, railways, rectifiers systems etc.

  Dimensions（mm）：
