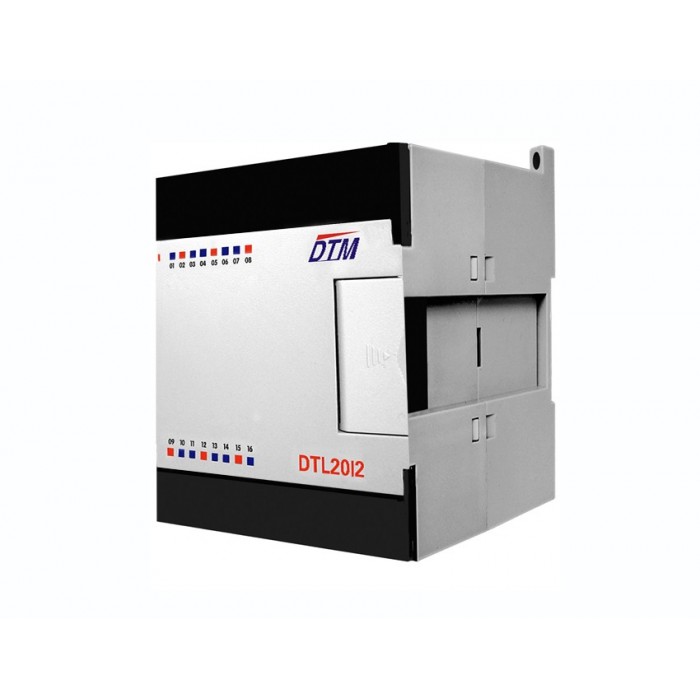

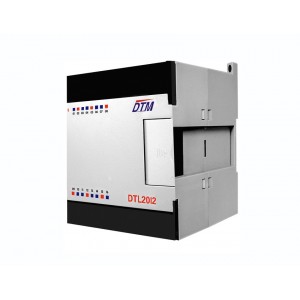

DTL2012 Controls
DTL2012 series multiple power parameter measurement device road is for low voltage distribution power management, power monitoring and energy consumption management and energy saving analysis and research of the set remote measure, remote communication, remote control in one of the more intelligent measurement device. Road Has the power parameter acquisition, the switch quantity condition monitoring and alarm output control, and other functions, has a very high price.
Features
Real-time voltage, current, active power, reactive power, power factor, the parameters such as frequency measurement
Current transformer with special high precision
Voltage PT isolated input measurement
Active electricity degrees, reactive power electricity degrees measurement
2 "standard MODBUS-RTU communication
12/24/36 road active switching output
2 "relay output
Wide range work power 85 ~ 265 VAC or 100 ~ 300 VDC
Performance
DTL2012-X, 12 road measurement device
Current model-I 1 road relay output + 12 road current + 1 road RS485 communication
Digital current model-DI 12 road switch input + 1 road relay output + 12 road current + 1 road RS485 communication
Comprehensive-Z 12 road switch input + 1 road relay output + 12 road full electric parameters + 1 road RS485 communication
Harmonic type-ZH 12 road switch input + 1 road relay output + 12 road full electric parameters + harmonic power + 1 road RS485 communication
Selection Guide
|
model |
DTL2036 |
DTL2024 |
DTL2012 |
|||||||||
|
Current model |
Digital current model |
compre- hensive |
Harmo -nic type |
Current model |
Digital current model |
compreh -ensive |
Harmo -nic type |
Current model |
Digital current model |
comprehe -nsive |
Harmonic type |
|
|
Full electric parameters measure -ment points |
— |
— |
36 |
36 |
— |
— |
24 |
24 |
— |
— |
12 |
12 |
|
Phase electric current measure -ment points |
36 |
36 |
■ |
■ |
24 |
24 |
■ |
■ |
12 |
12 |
■ |
■ |
|
Relay output points |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
1 |
1 |
|
Switch input points |
— |
36 |
36 |
36 |
— |
24 |
24 |
24 |
— |
12 |
12 |
12 |
|
RS485 communic -ation points |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
1 |
|
Harmonic power |
— |
— |
— |
■ |
— |
— |
— |
■ |
— |
— |
— |
■ |
“■” intrinsic function，“*“optional function，“—”no this function.
