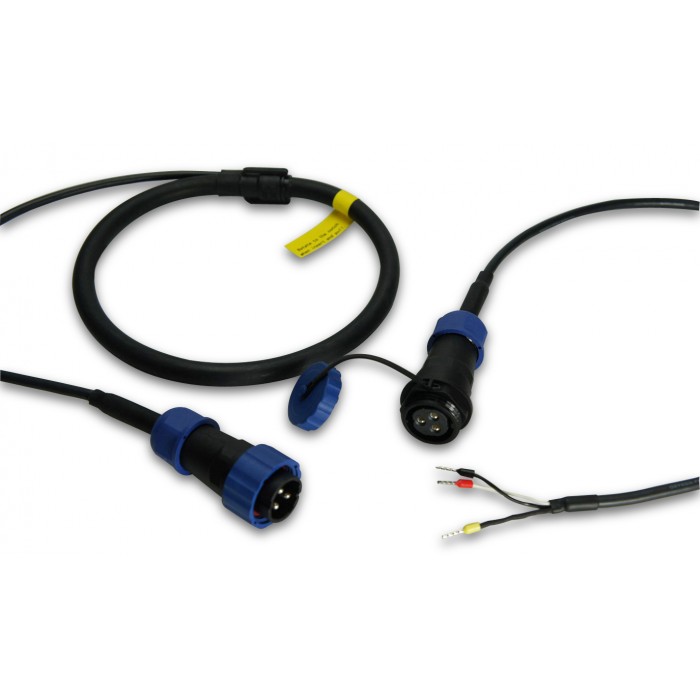

中文T-FCT Thicker flexible rogowski coil CT
- View full size
Home > T-FCT Thicker flexible rogowski coil CTApplication
● Power meters
● Energy sub-meters
● Power quality monitoring
● Condition monitoring
● Distributed measurement systems.
● Lighting current
● Electric furnace
● Harmonic management
● Relay Protection
Specification
| Current range(rms) | 0-50000A AC |
| Output signal(di/dt) | 144 mV/1000A @ 60 Hz |
| 120 mV/1000A @ 50 Hz | |
| Accuracy(typ.) | ±0.5% of reading(most |
| accurate position, 25℃) | |
| Linearity (10% to 100% of range) | ±0.2% of reading |
| Bandwidth (-3dB) | 2Hz to 100kHz |
| Output sensitivity tolerance | ±2% |
| Max. Response time(10 to 90%) | 1us |
| Phase error | ≤1% |
| Conductor position sensitivity | ±1% of reading |
| Operating temperature | -20℃~to 70℃ |
Model
| Rated current (A) |
Coil Length (mm) |
Cable Length (m) |
Color |
| 250A | 300mm | 1m | Black |
| 500A | 520mm | 2m | Yellow |
| 900A | 800mm | 3.5m | Red |
| … | … | … | Green |
| 50000A | Custom lengths | Custom lengths | Blue |
For example: T-FCT-1000-300-1-B means this thickened flexible rogowski coil T-FCT has a rated primary current 1000A, 300mm coil , 1m cable and it is black.
