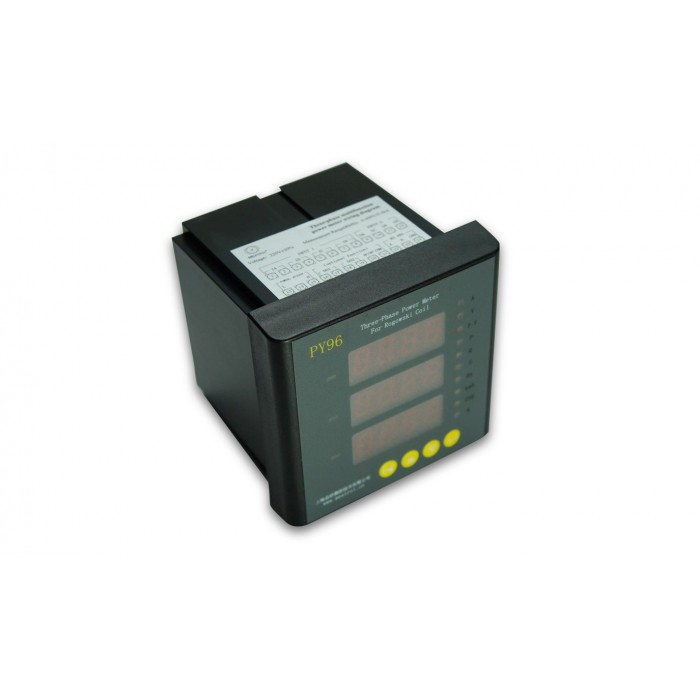

PY96 Three-phase Power quality analyzer

Overview

PY96 series have three-phase current , voltage, power meter, adopting AC sampling Technology，can directly  measure the current of a single-phase or three-phase power . It not only can be used for local display, also can be connected with the industrial control equipment.
The meter has RS-485 communication interface, using compatible with Modbus-RTU protocol.

Application

Network measurement

Specification

1.Wiring: three-phase four wire
2.Frequency: 45~65HZ
3.Voltage: rated:AC 220V
4.Current :rated: AC 2000A
5.Communication: RS485 interface、Modbus-RTU protocol
6.Display: LED
7.Precision grade: 0.5
8.Power  supply: AC220V±10%；power waste ≤2VA
9.Environment: working temperature:-10℃～+55℃
