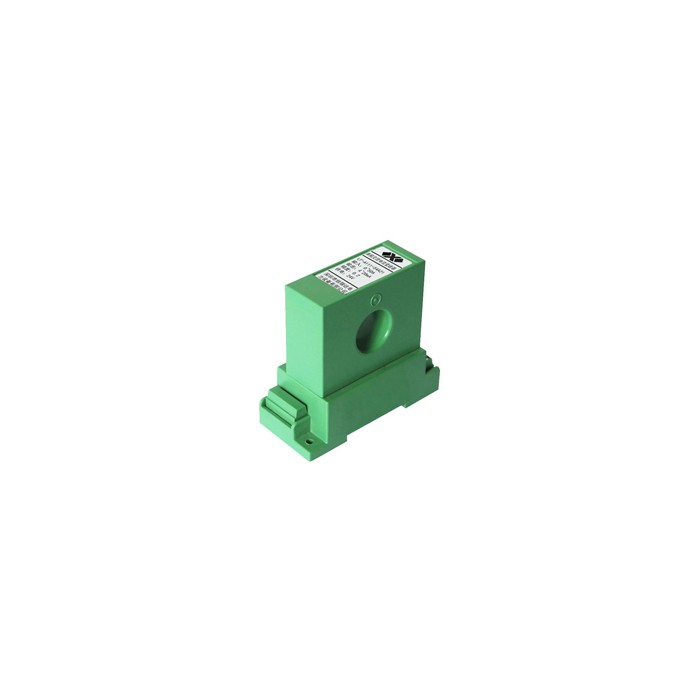

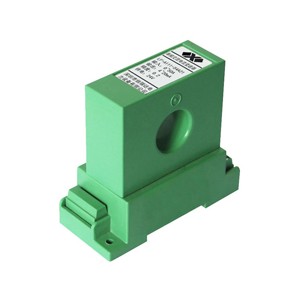

A21 1-phase AC Current Transducer

*Transforms the measured 1-phase AC current into the standard DC
voltage or DC current output according to the linear proportion;
*Excellent anti-interference ability and high accuracy (0.5%)；
*Perforation input,standard din rail(35mm) mounting；
*It widely applies to all kinds of industrial current online detection system;
*Dimension(mm):83(L)×36(W)×76(H)，aperture：20mm

Specification：

* Standards: GB/T 13850-1998, IEC688:1992

* Input Range: 0~300A can choose 0~1A, 0~50Aetc

* Accuracy Grade: ≤0.5%.F.S

* Temperature Characteristics: ≤100PPM/℃(0~50℃)

* Power Consumption: ≤1.0VA

* Working Stability: annual change＜0.2%

* Isolation Withstanding Voltage AC2.0KV/min*1mA between input/output/case

* Isolation Resistance: ≥20MΩ(DC500V)

* Impulse Voltage: 5KV(peak value), 1.2/50uS

* Response Time: ≤300mS

* Overload Capacity: 2 times current continuous, 30 times current 1 second

* Working Environment: -10℃~50℃, 20%~90%without condensation

* Storage Environment: -40℃~70℃, 20%~95%without condensation

Model：

Dimension：

Connection:
