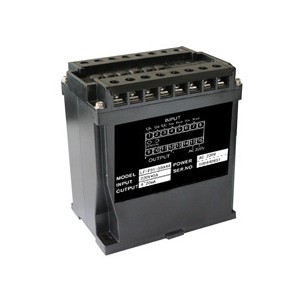

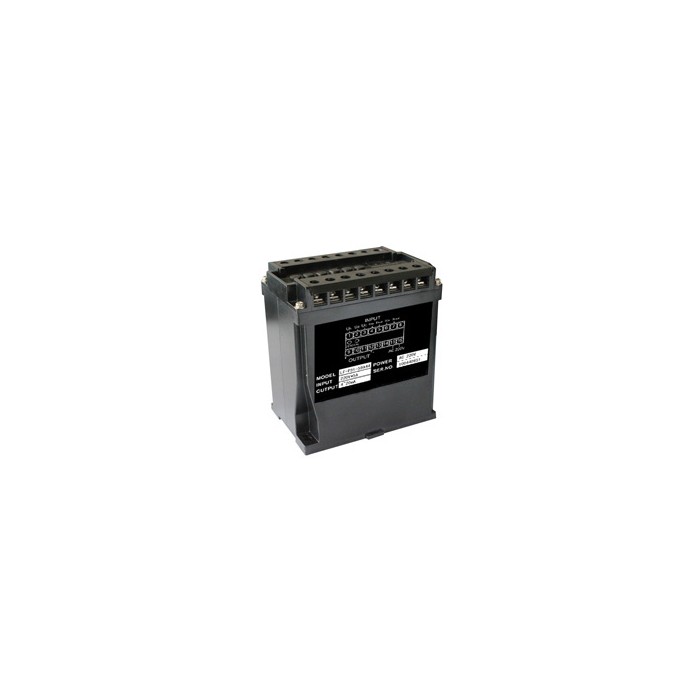

A44 Power Transducer

*Transforms the measured 3-phase AC active power, reactive power into the standard DC voltage or DC current output according to the linear proportion
*SCM technology, precise latest algorithm can achieve the precise measurement of the AC circuit power
*Excellent anti-interference ability and high accuracy (0.2%)
*Voltage terminal insert，standard din rail(35mm) mounting
*Dimension(mm): 110(L)×75(W)×120(H）
*Power supply AC/DC110V(220V)

Specification：

* Standards：GB/T13850-1998, IEC688:1992

* Input Range：0~500V(0~5A) is optional

*Accuracy Grade：≤0.2%.F.S

* Temperature Characteristics：≤100PPM/℃(0~50℃)

* Power Consumption：≤5.0VA

* Working Stability：annual change＜0.2%

* Isolation Withstanding Voltage：AC2.0KV/min*1mA between input/output/power

* Isolation Resistance：≥20MΩ(DC500V)

* Impulse Voltage：5KV(peak value)，1.2/50uS

* Response Time：≤300mS

*Load Capacity：2 times current continuous

* Working Environment：-10℃~50℃，20%~90%without condensation

* Storage Environment：-40℃~70℃，20%~95%without condensation

Model：

Dimension：

Connection:
