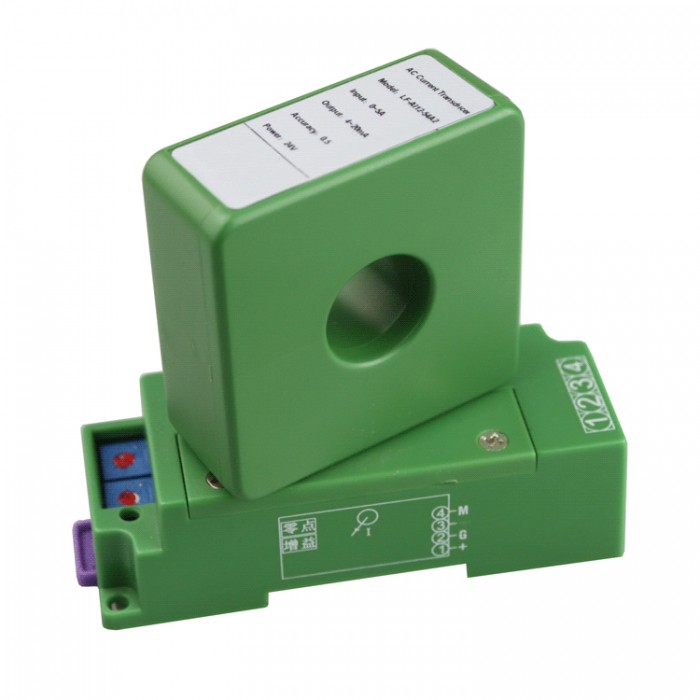

*Transformer electromagnetic isolation principle, transforms the measured AC micro current into standard DC voltage output according to the linear proportion
*High anti-interference ability, suitable for long distance transmission
*Controlled by temperature compensation circuit, SCM technology, measure accurately
*Perforation input, standard din rail(35mm) mounting
*The measuring head can be rotated, is convenient to thread wire from different angle
*It widely apply to the branch way power supply of the isolation online detection in AC power supply system
*Dimension(mm): A2: 95(L)×37(W)×88.5(H） aperture: 20mm

Specification：

*Input Range：0~500mA can choose 0~10mA, 0~20mA etc

*Accuracy Grade：≤1.0%.F.S

*Linearity Degree：better than 0.2%

*Response Time:≤200mS

*Offset Current: ≤20uA

*Temperature Characteristics:≤150PPM/℃(0~50℃)

*Power Consumption:≤30 mA

*Isolation Withstanding Voltage:AC2.0KV/min*1mA between input /output/ power

*Flame Retardancy:UL94-V0

*Working Environment:-10℃~50℃，20%~90% without condensation

*Storage Environment:-40℃~70℃，20%~95% without condensation

Model：


T: special output

Dimension：

Connection:
