DTP300C Electrical Fire Monitoring

View full size

More info

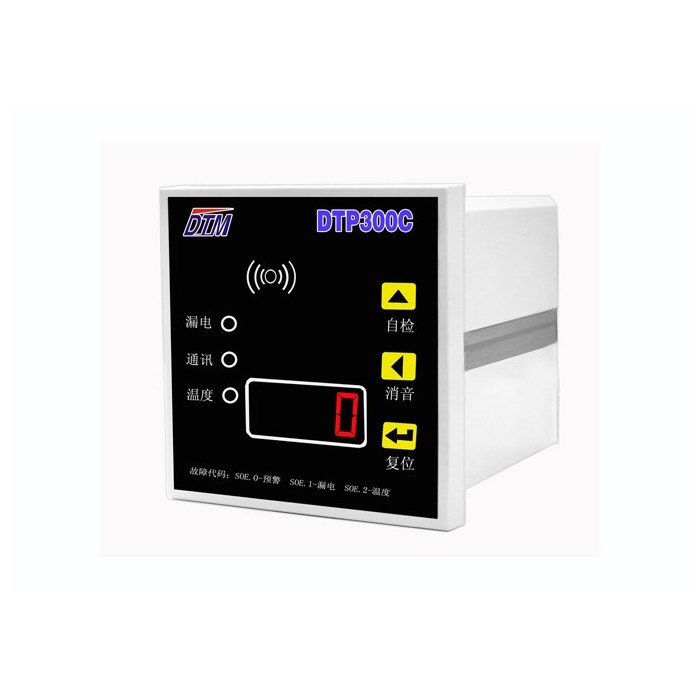

DTP300C Electrical Fire Monitoring

Mainly used in the low-pressure three-phase four-wire system leaks auges residual current electrical fire protection box of leakage electricity parameter measurement Highlight LED digital display, data turns tube to display and designated show optional with time memory function, alarm can record 10 faults types, time, triggering time values, according to the fault record can analyse the reason of failures to provide basis for the elimination of failure.

Use range

1.Apply to all kinds of existing electrical equipment

2.High-rise buildings, fire hazard in places such as crowded conditions of electrical protection

3.Key fire-proof building electrical protection

4.Electrical parameters of time measurement

5.Electrical fire monitoring system

6.Suitable for 380V power supply line of voltage level protection

Professional design

■Professional independent design, powerful, reveal the technical strength

■Industrial parts, stable and reliable, the first-class quality

■Through the national fire protection test

■Series is complete multiple types can be chosen

■Applicable to 0.4 KV electric voltage grade fire monitoring protection

■Work into electricity switching power supply, work straight and wide range

The main characteristics of DTP300C series products

◆Digital pipe display, data turns display and specified display can be chosen

◆With 1 road leakage, 1 road temperature and so on many kinds of protection function

◆Provide 2 lk switch input, programmable trigger time, can set with fire smoke sensors, remote signal connection, constitute fire linkage

◆Adopt fieldbus communication technology, PC management software can be monitoring each detector. Communication adopt international standard Modbus - RTU agreement with various standards, can power monitoring software connected.

Performance

Environmental conditions

Working temperature The subject ：-20℃~+50℃

Liquid crystal display (LCD) ： -10℃~50℃

Storage temperature -20℃~85℃

Relative humidity ≤95%

The altitude ≤2000m

Degree of protection IEC529IP52

Working power supply

Ac voltage 85~265VAC

The power frequency 45~65Hz

Dc voltage 100~300VDC

Power consumption ≤2VA

Communication RS485

Interface Modbus-RTU

Communication protocol 2400~9600

Electromagnetic compatibility standards

Electrostatic resistance test IEC61000-4-2

Radiation immunity test IEC6100-4-3

Conduction rf interference test EN55022，ClassB

Transient pulse test IEC61000-4-4，Level3

Surge immunity test EC61000-4-5,Level3

Radio frequency radiation interference test EN55022,ClassB

Rated current level （A） 16、25、32、40、50、63、80、100、

125、140、160、180、200、225、

250、315、400、630、800、1250

The rated voltage （V） Three phase four wire, phase voltage AC220V

Residual current measuring range 0~1000mA

Residual current setting value l△ 50~1000mAStep selection, each interval 50mA

Forecasting warning value l△no(mA) l△no＝1/2 l△n

The action time （S） 0.1~5adjustable ，interval 0.1S

Over-voltage action （V） 120~150%The rated voltage

Voltage under-voltage action （V） 60~80%The rated voltage

Temperature measurement measurement ：10~150℃，action ：55~140℃

Overall dimensions DTP300：Length X width X height （mm）144X90X57

DTP300B：Length X width X height （mm）96X96X55

DTP300C：Length X width X height （mm）72X72X74

Selection Guide

Category		Single multi-function series				Multi-channel series			economy
Function		DTP300	DTP301	DTP302	DTP303	DTP310	DTP311	DTP300B	DTP300C
Real-time measuring value	Phase voltage	—	—	■	■	—	—	—	—
	current	■	■	■	■	—	—	—	—
	Residual current	■	■	■	■	—	—	—	■
	Environment temperature	—	—	■	■	—	—	—	*
	Total have power	—	—	—	■	—	—	—	—
	Meritorious electric degrees	—	—	—	■	—	—	—	—
Protection function	Leakage protection	■	■	■	■	■	■	■	■
	Over-current protection	—	■	■	■	—	—	—	—
	Temperature protection	—	■	■	■	—	—	*	*
	Over/owe protection	—	—	■	■	—	—	—	—
	Phase lack protection	—	—	■	■	—	—	—	—
	Event record	■	■	■	■	■	■	■	■
	Voice alarm	■	■	■	■	■	■	■	■
	Self-check function	■	■	■	■	■	■	■	■
Expansion function	Smoke detection (S)	—	*2	*2	*2	—	—	—	—
	Consumption linkage (F)	*1	*1	*1	*1	*1	*1	*1	*1
	Alarm output (P)	*1	*1	*1	*1	*1	*1	*2	*1
	Are dctection(A)	*	*	*	*	—	—	—	—
Communication	RS485communication	■	■	■	■	■	■	■	■
Leakage circuit		1	1	1	1	4	8	12	1

“■” intrinsic function, "*" optional function, "-" no this function
