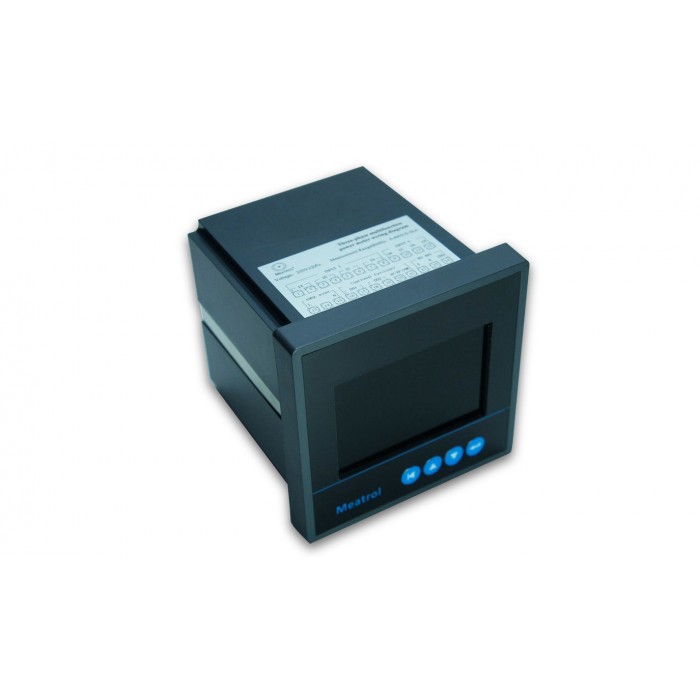

ME432 Three phase Power Quality Analyzer
Overview
PY96 series have three-phase current , voltage, power meter, adopting AC sampling Technology，can directly measure the current of a single-phase or three-phase power . It not only can be used for local display, also can be connected with the industrial control equipment.
The meter has RS-485 communication interface, using compatible with Modbus-RTU protocol.
Application
Network measurement
Specification
| Technical parameters | Index | |
| Input | Wiring | Three-phase four wires |
| Frequency | 45~65HZ | |
| Voltage | Rated value：AC 220V | |
| Power consumption：<0.2VA | ||
| Current | Rated value：AC 100A | |
| Power consumption：<0.2VA | ||
| Output | Communication | RS485interface、Modbus-RTU protocol |
| Display | TTF | |
| Precision grade | 0.5 | |
| Power supply | AC220V±10%；power consumption ≤10VA | |
| Environment | Operating temperature：-10℃～+55℃； storage temperature：-20℃～+70℃ relative humidity：5%～95% Non condensation； height above sea level：≤2500m |
|
