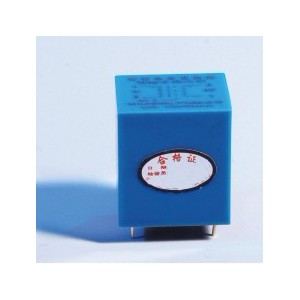

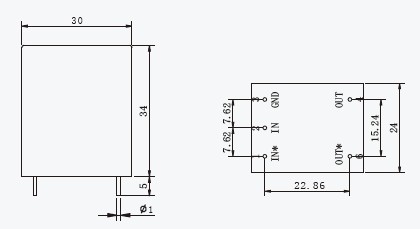

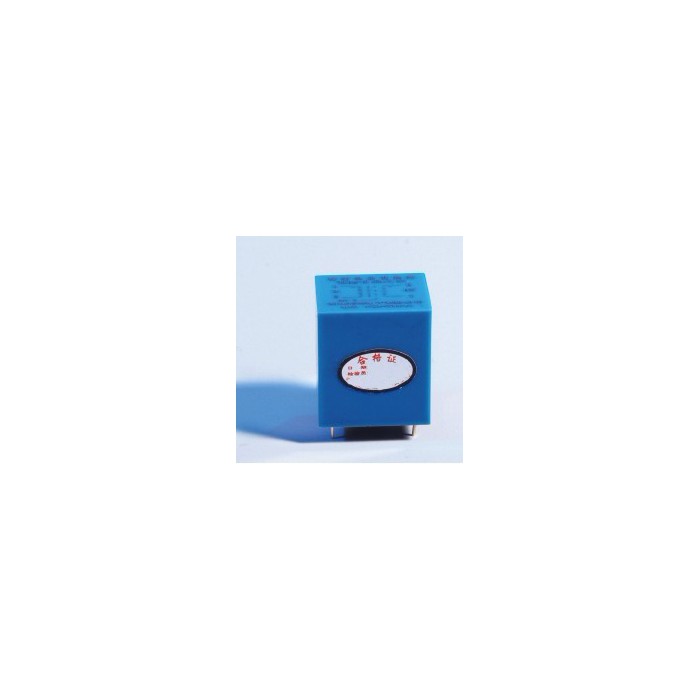

TR1143-1G Voltage Transformer used for wave recording

Production Description

Voltage Output Current converter used for wave recording.During use, output type may be the output type with lead wire or the output with connector.

Performance Indicators

Parameter

Symbol

Indicator

Rated Input current

Vn

0~380V

Secondary output voltage

VO

0~10V

Precision level

ρ

0.1 level

Maximum overload current

2Vn

Withstand voltage

Vd

2500V/min

Dielectric strength

500MΩ/500V/min

Working temperature

Ta

-25℃ ~ +65℃

Storage temperature

Ts

-40℃ ~ +80℃

Working frequency

f

45Hz ~1500Hz

Relative Humidity

<90%

Enclosure material

Fire retardation PBT/Fire retardation ABS

Product Features

Excellent linearity, excellent consistency, wide working range.

Simple circuit, the external working power supply is not necessary, reliable run.

Current voltage can be converted to be in place at one time, voltage is outputted directly.

Product Application



Main specifications

Input

Output

Load

Precision

Phase difference

input voltage overload multiplier

100V

3.53V

>5KΩ

0.1

<10ˊ

1.2

100V

7.07V

>5KΩ

0.1

<10ˊ

1.2

100V

4V

>5KΩ

0.1

<10ˊ

1.2

100V

6V

>5KΩ

0.1

<10ˊ

1.2

120V

7.07V

>5KΩ

0.1

<10ˊ

1.2

150V

4V

>5KΩ

0.1

<10ˊ

1.2

200V

3.53V

>5KΩ

0.1

<10ˊ

1.2

300V

3.53V

>5KΩ

0.1

<10ˊ

1.2

380V

5V

>5KΩ

0.1

<10ˊ

1.2

Remarks

Above specifications are stock, also, they can be designed based on customers requirements.
