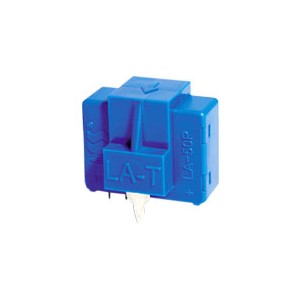

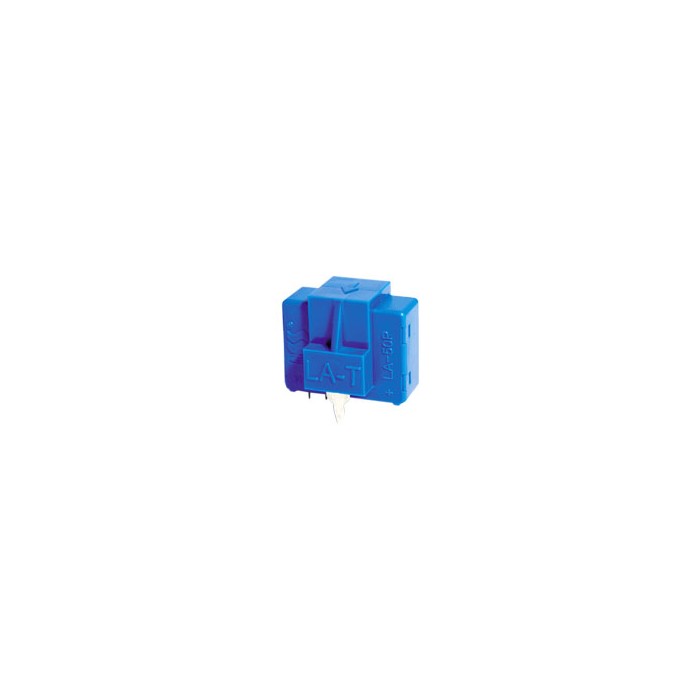

Home SLA-50T,SLA-100T Hall effect current sensor
Nominal current: IN=50A/100A
|
SENSOR |
LA-50T、LA-100T Closed-loop Hall current sensor |
||||
|
Description |
The SENSOR Module LA-50T、LA-100T is a closed loop Hall current sensor to measure 50A、100ADC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The input of primary current is by a bus bar. |
||||
|
|
|||||
Selected types :
|
Type |
Nominal current |
Output current |
Accuracy |
Supply voltage |
Aperture |
|
IN（A） |
IM（mA） |
X（%） |
Vc（V） |
mm |
|
|
LA-50T |
50 |
50 |
±0.8% |
±15 |
Bus bar |
|
LA-100T |
100 |
50 |
±0.5% |
±15 |
Bus bar |
Output current: IM=50mA
Selected types :
|
Principle |
Closed loop Hall current sensor |
||||
|
Frequency |
DC~200KHz |
||||
|
Accuracy |
0.5%、0.8% (Ta =+25℃) |
||||
|
Linearity |
0.1% |
||||
|
Response time |
<1μS |
||||
|
Supply voltage |
±15V（±5%） |
||||
|
Consumption |
10mA+IM （Output current） |
||||
|
Isolation voltage |
Between primary and secondary circuit: 2.5KV RMS/50Hz/1min. |
||||
|
Operating temp. |
0 …+70℃/-25 …+70℃ |
||||
|
Applications |
The SENSOR Modules have been successfully used in Power supplies, welding machines, |
||||
|
|
industry auto-control, Converters, Motor drives, Electric Power, Railways, Rectifiers systems etc. |
||||
Supply voltage: Vc=±15V

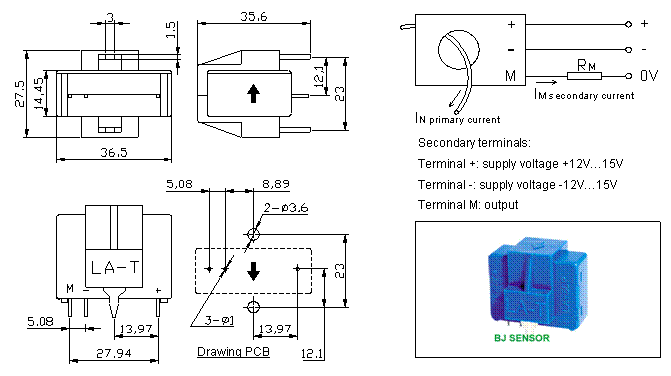

Dimensions(mm) & Connection:
Measuring resistance: RM=0Ω
Typical Applications:
