Sensor Module

CHY-5AG、50AG、100AG、200AG、400AG、500AG

Description

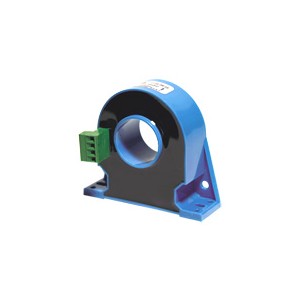

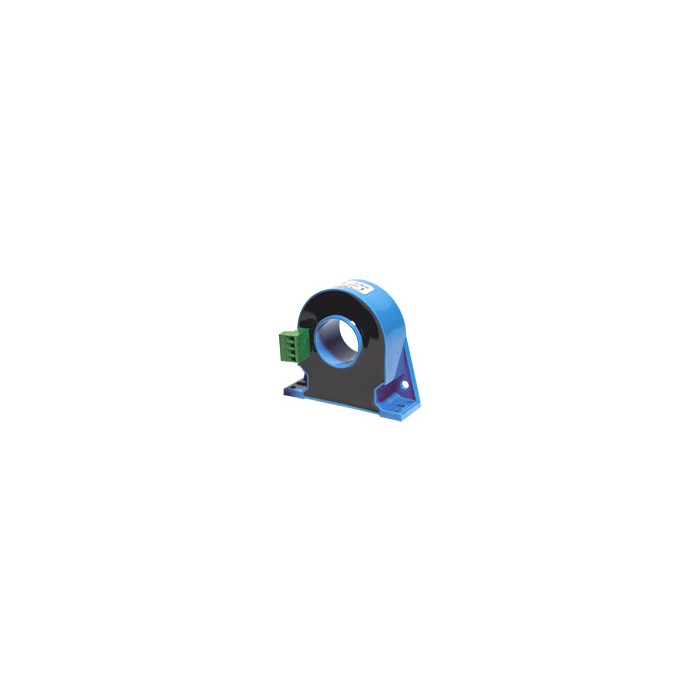

The SENSOR Module CHY-AG is an AC current transducer to measure 5A…500A AC currents with a galvanic isolation between the primary and secondary circuits. The output of the transduceris a standard DC signal.

AC Current Transducer（Output 0…20mA）:

Type

Nominal current

Output current

Accuracy

Supply voltage

Aperture

I_N（A）

I_M（mA）

X（%）

Vc（V）

mm

CHY-50AG/A0

50

0…20

±0.5%

15~24

φ35

CHY-100AG/A0

100

CHY-200AG/A0

200

CHY-400AG/A0

400

CHY-500AG/A0

500

AC Current Transducer（Output 4…20mA）:

Type

Nominal current

Output current

Accuracy

Supply voltage

Aperture

I_N（A）

I_M（mA）

X（%）

Vc（V）

mm

CHY-50AG/A1

50

4…20

±0.5%

15~24

φ35

CHY-100AG/A1

100

CHY-200AG/A1

200

CHY-400AG/A1

400

CHY-500AG/A1

500

AC Current Transducer（Output 0…5V）:

Type

Nominal current

Output voltage

Accuracy

Supply voltage

Aperture

I_N（A）

V_M（V）

X（%）

Vc（V）

mm

CHY-50AG/V0

50

0…5

±0.5%

15~24

φ35

CHY-100AG/V0

100

CHY-200AG/V0

200

CHY-400AG/V0

400

CHY-500AG/V0

500

AC Current Transducer（Output 1…5V）:

Type

Nominal current

Output voltage

Accuracy

Supply voltage

Aperture

I_N（A）

V_M（V）

X（%）

Vc（V）

mm

CHY-50AG/V1

50

1…5

±0.5%

15~24

φ35

CHY-100AG/V1

100

CHY-200AG/V1

200

CHY-400AG/V1

400

CHY-500AG/V1

500

Specifications:

Principle

Transducer

Input current

5A…500A（AC）

Output

One of A0=0~20mA、A1=4~20mA、V0=0~5V、V1=1~5V（DC）

Frequency

50Hz（400Hz）

Accuracy

±0.5%

Response time

<0.35S

Linearity

<0.5%

Supply voltage

+15V…24V（±5%）

Consumption

30mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

-25℃ …+85℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

Dimensions(mm) & Connection:
