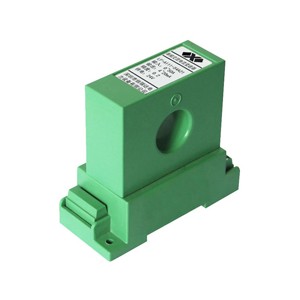

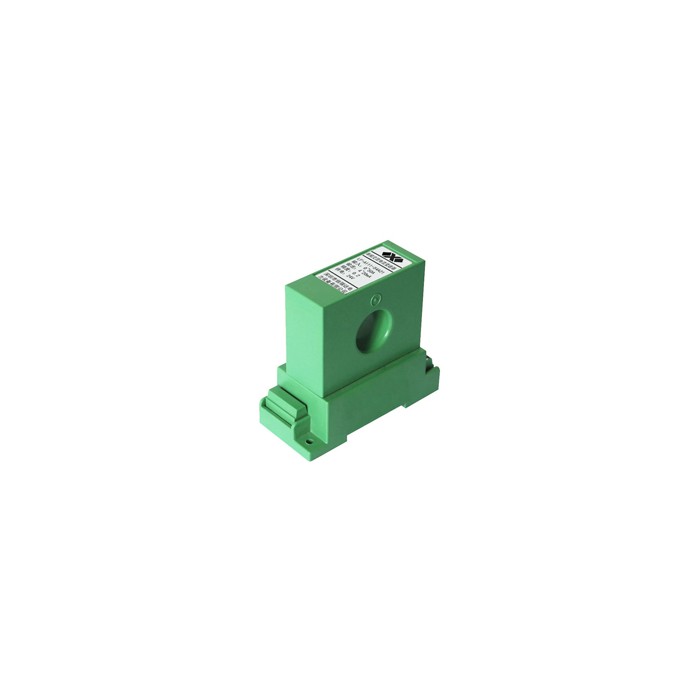

A21 DC Current Transducer

*Hall open-loop operational principle, can measure current in any waveform, the output terminal can reflect the waveforms parameters of input current;
*Controlled by temperature compensation circuit, measure accurately;
*Perforation input, standard din rail(35mm) mounting;
*It was widely applied to all kinds of industrial current online detection system;
*Dimension(mm):83(L)×36(W)×76(H), aperture:20mm

Specification:

*Standards : IEC688:1992, QB/LF2007-1

Input Range:0~300A can choose 0~50A,0~300A etc

Accuracy Grade:≤1.0%.F.S

Linearity Degree :Better than 0.2%

*Response Time:≤10uS

*Frequency: 0~10KHZ

*Offset Voltage:≤20mV

*Flame Retardancy:UL94-V0

*Temperature Characteristics :≤50PPM/℃（0~50℃）

*Power Consumption:≤30mA

*Isolation Withstanding Voltage AC2.0KV/min*1mA between input/output/case

*Load Capacity 2 times current continuous, 30 times 1 second

*Working Environment: -10℃~50℃,20%~90% without condensation

*Storage Environment: -40℃~70℃,20%~95% without condensation

Model:

Dimension:

Connection:
