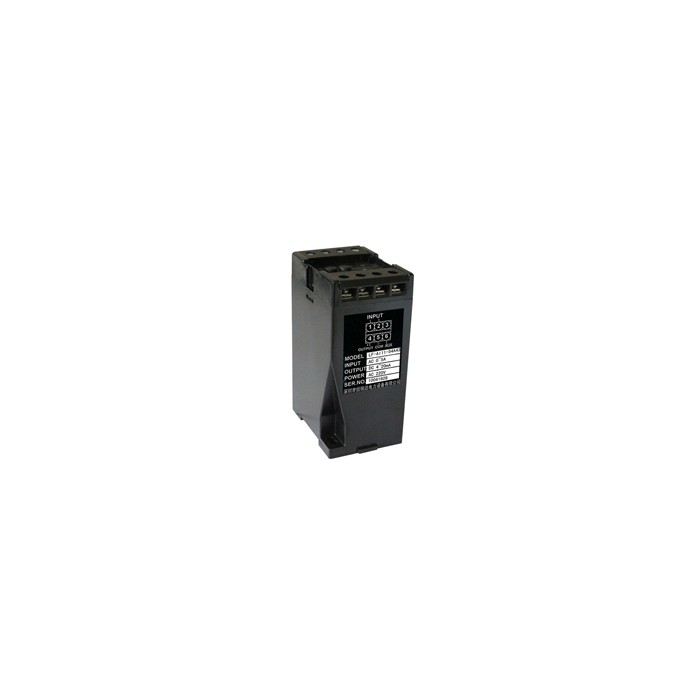

A43 DC Current Transducer
*Transforms the measured DC current to the 1-way standard DC voltage or DC current output according to linear proportion;
*Excellent anti-interference ability and high accuracy (0.2%);
*Current terminal input, standard din rail(35mm) mounting;
*It was widely applied to all kinds of industrial current online isolation detection system;
*Dimension(mm): 75(L)×55(W)×120(H);
*AC/DC110V(220V) power supply
Specification:
*Standards:IEC688:1992, QB/LF2007-1
Input Range:0~5A can choose 4~20mA,0~100mA etc
Accuracy Grade:≤0.2%.F.S
*Temperature Characteristics:≤50PPM/℃(0~50℃)
*Power Consumption:≤1VA
*Working Stability:annual change<0.2%
*Isolation Withstanding Voltage: AC2.0KV/min*1mA between input/output/case
*Isolation Resistance: ≥20MΩ (DC500V)
*Impulse Voltage:5KV(peak value),1.2/50uS
*Response Time:≤300mS
*Load Capacity: 1.2 times current continuous
*Working Environment: -10℃~50℃,20%~90% without condensation
*Storage Environment: -40℃~70℃,20%~95% without condensation
Model:
A---Output | B---Power supply |
3:0~5V 4:0~20mA 5:4~20mA 6: 1~5V 8: 0~10V |
2:12V±10% |
T: Special output | C---Current input range |
|
|
Model selection1: LF-DI12-59A43-0.2/0~5A | |
Explanation: this product is a 0~5A input range, 4~20mA output, |
Dimension
Connection:
