SB1 DC Current Transducer
- View full size
HomeSB1 DC Current Transducer

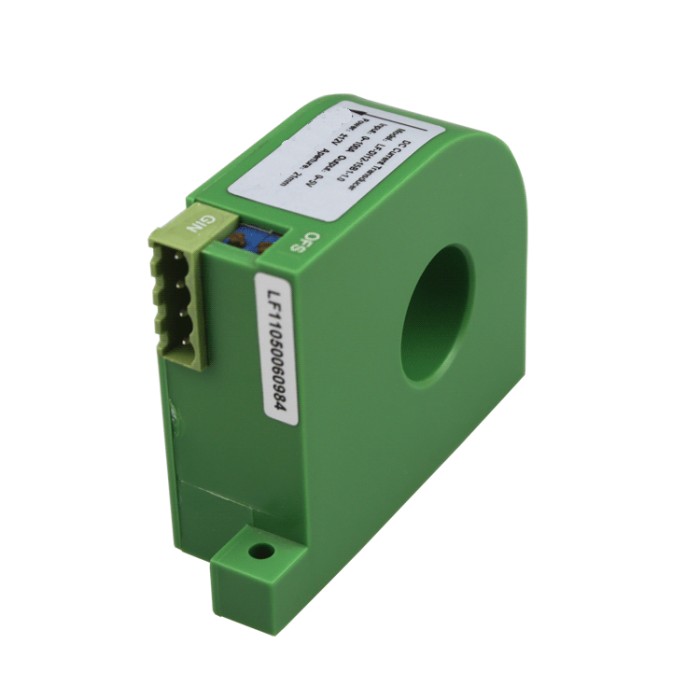

SB1 DC Current Transducer
*Hall open-loop operational principle, can measure current in any waveform, the output terminal can reflect the waveforms parameters of input current
*Controlled by temperature compensation circuit, measure accurately
*Perforation input, plug terminal, screw fastening plane mounting
*It widely applies to all kinds of industrial current online detection system
*Dimension(mm):90(L)×26(W)×60(H) aperture:20mm
Specification：
*Standards :IEC688:1992, QB/LF2007-1
*Input Range :0~500A can choose 0~50A,0~100A etc
*Accuracy Grade:≤1.0%.F.S
*Linearity Degree:Better than 0.2%
*Response Time:≤10uS
*Frequency:0~10KHZ
*Offset Voltage:≤20mV
*Temperature Characteristics :≤150PPM/℃（0~50℃）
*Power Consumption:≤30mA+output current
*Isolation Withstanding Voltage AC2.0KV/min*1mA between input/output/ power
*Load Capacity 2 times current continuous, 30 times 1 second
*Flame Retardancy:UL94-V0
*Working Environment: -10℃~50℃,20%~90% without condensation
*Storage Environment: -40℃~70℃,20%~95% without condensation
Model：
| A---Output 3: 0~±5V T: Special output |
| B---power supply 5: ±12V±10% 6: ±15V±10% |
| C---Current input range |
| Model selection1: LF-MI11-35B1-1.0/0~±10mA Explanation: this product is a 0~±10mA input range, 0~±5V output, ±12V power supply, B1 style DC leakage current sensor. |
Dimension：
Connection:
