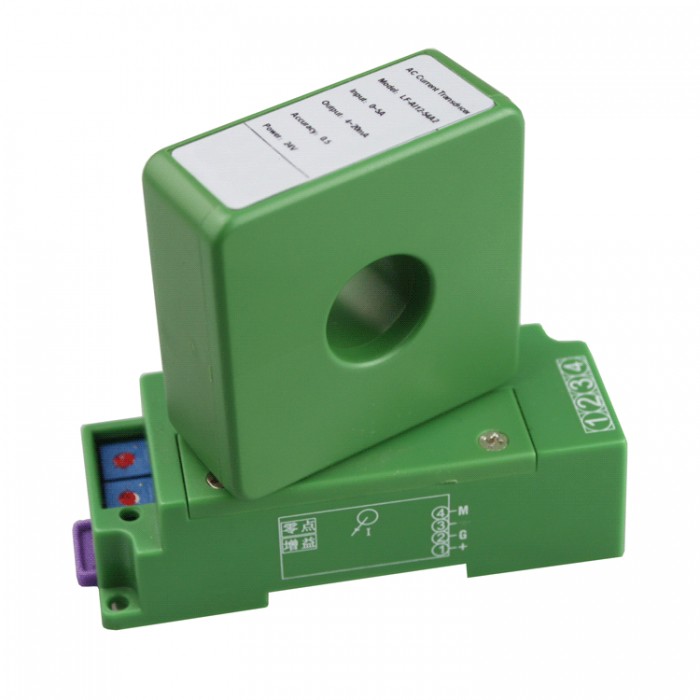

A2 1-phase AC Current Transducer

*Transforms the measured 1-phase AC current into the standard DC
voltage or DC current output according to the linear proportion；
*Excellent anti-interference ability and high accuracy (0.5%)；
*Perforation input,standard din rail(35mm) mounting；
*The measuring head can be rotated, is convenient to thread wire from different angle；
*It widely applies to all kinds of industrial current online detection system；
*Dimension(mm):95(L)×37(W)×88.5(H) aperture:20mm

Specification：

* Standards:GB/T 13850-1998，IEC688:1992

* A2 Input Range:0~150A can choose 0~10mA，0~5A etc

*Accuracy Grade：≤0.5%.F.S

*Temperature Characteristics ：≤100PPM/℃(0~50℃)

* Power Consumption：≤30mA+output current

* Working Stability:annual change＜0.2%

* Isolation Withstanding Voltage：AC2.0KV/min*1mA between input/output/case

* Isolation Resistance ：≥100MΩ(DC500V)

*Impulse Voltage：5KV(peak value),1.2/50uS

* Response Time：≤300mS

* Overload Capacity: 2 times current continuous, 30 times current 1 second

* Working Environment:-10℃~50℃，20%~90%without condensation

* Storage Environment ：-40℃~70℃，20%~95%without condensation

Model：

Dimension：

Connection:
