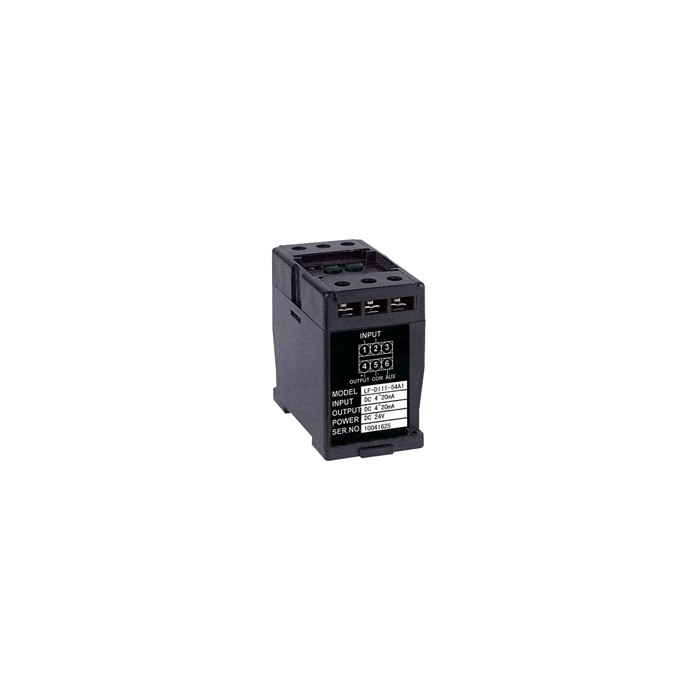

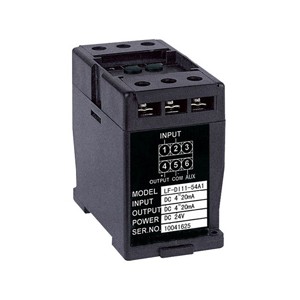

A41 1-phase AC Current Transducer

*Transforms the measured 1-phase AC current into the standard DC
voltage or DC current output according to the linear proportion;
*Low power consumption three isolations, high reliability;
*Excellent anti-interference ability and high accuracy (0.5%);
*Current terminal input, standard din rail(35mm) mounting;
*It widely applies to all kinds of industrial current online detection system;
*Small size, dimension(mm):95(L)×37(W)×32(H)

Specification：

* Standards：GB/T 13850-1998，IEC688：1992

* Input Range：0~10A can choose 0~1A，0~5A etc

* Accuracy Grade：≤0.5%.F.S

* Temperature Characteristics：≤100PPM/℃(0~50℃)

* Power Consumption：≤1.0VA

* Working Stability：annual change＜0.2%

* Isolation Withstanding Voltage：AC2.0KV/min*1mA between input/output/case

* Isolation Resistance：≥20MΩ(DC500V)

* Impulse Voltage：5KV(peak value)，1.2/50uS

* Response Time：≤300mS

* Load Capacity：2 times current continuous, 30 times current 1 second

* Working Environment：-10℃~50℃，20%~90% without condensation

* Storage Environment：-40℃~70℃，20%~95% without condensation

Model：

Dimension：

Connection:
