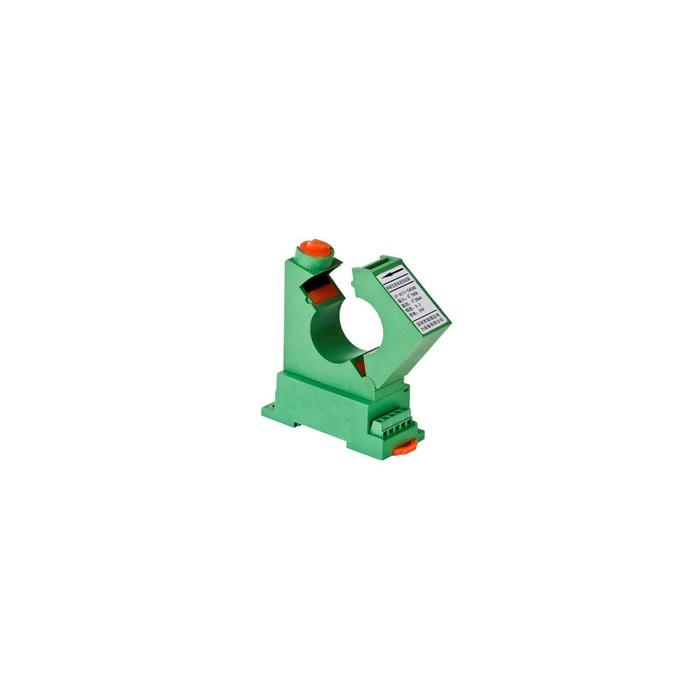

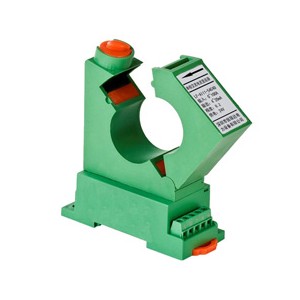

C40 1-phase AC Current Transducer

*Transforms the measured 1-phase AC current into the standard DC voltage or DC current output according to the linear proportion
*Excellent anti-interference ability and high accuracy (1.0%)
*Perforation input, standard din rail(35mm) mounting
*Split Core measuring head, can install and measure with electricity
*It widely applies to all kinds of industrial current online detection system
*Dimension(mm):83(L)×36(W)×100(H） aperture: 31mm

Specification：

* Standards：GB/T 13850-1998，IEC688：1992

* Input Range：0~300A can choose 0~50A，0~200A etc

* Accuracy Grade：≤1.0%.F.S

* Temperature Characteristics：≤100PPM/℃(0~50℃)

* Power Consumption：≤1.0VA

* Working Stability：annual change＜0.2%

* Isolation Withstanding Voltage:AC2.0KV/min*1mA between input/output/power

* Isolation Resistance：≥20MΩ(DC500V)

* Impulse Voltage：5KV(peak value),1.2/50uS

* Response Time：≤300mS

* Load Capacity :2 times current continuous, 30 times current 1 second

* Working Environment：-10℃~50℃，20%~90% without condensation

* Storage Environment：-40℃~70℃，20%~95% without condensation

Model：

Dimension：

Connection:
