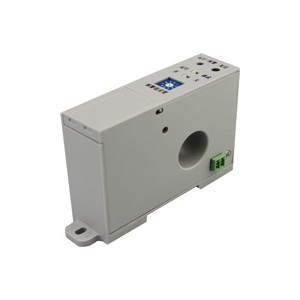

SA4 DC Leakage Current Sensor
- View full size
HomeSA4 DC Leakage Current Sensor
*Electromagnetic modulation principle, transforms the measured DC
micro current into the acousto-optic alarm, relay output
*High anti-interference ability, suitable for long distance transmission
*Controlled by temperature compensation circuit, SCM technology,
measure accurately
*Perforation input, standard din rail(35mm) mounting
*It widely applies to the branch way power supply of the isolation online detection in DC power supply system
*Dimension(mm): 103(L)×25(W)×62(H） aperture: 20mm
Specification：
*Input Range：0~±10mA can choose 0~±10mA
*Accuracy Grade：≤1.0%.F.S
*Linearity Degree：better than 0.2%
*Response Time:≤200mS
*Offset Current: ≤20uA
*Temperature Characteristics:≤150PPM/℃(0~50℃)
*Power Consumption:≤30 mA
*Isolation Withstanding Voltage:AC2.0KV/min*1mA between input /output/ power
*Flame Retardancy:UL94-V0
*Working Environment:-10℃~50℃，20%~90% without condensation
*Storage Environment:-40℃~70℃，20%~95% without condensation
Model：
| A---Output J: acousto-optic alarm, relay output |
| B---power supply T: transducer supply power with it's own battery |
| C---Current input range |
| Model selection1: LF-MI11-JTA4-1.0/0~±10mA Explanation: this product is a 0~±10mA input range, acousto-optic alarm, relay output, transducer supply power with it's own battery, A4 style intelligent DC leakage current senso |
Dimension：
Connection:
