Production Description

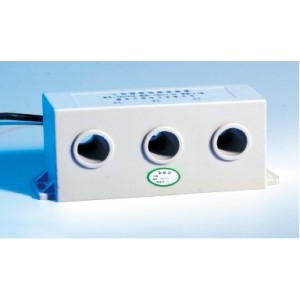

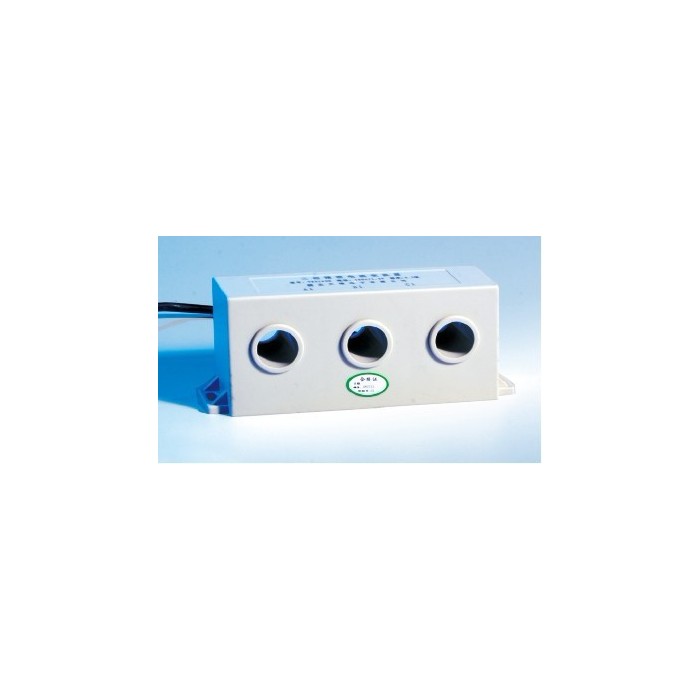

Transformers used specially for motor

Performance Indicators

Parameter

Symbol

Indicator

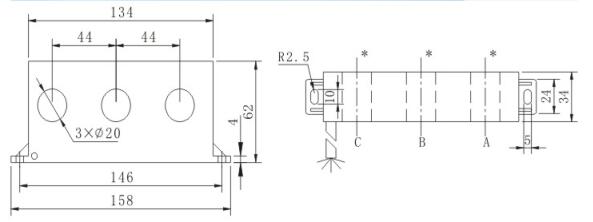

main dimension

--

Internal hole /Length/Height/Thickness

（20mm/158mm/62mm /34mm）

Rated Input current

In

0~200A

Secondary output

IO

0~5V(0~100mA)

Precision level

ρ

0.2 level

Overload multiple

－

10 times

Phase difference of the rated site

δ

5ˊ~15ˊ

Withstand voltage

Vd

3000V/min

Dielectric strength

－

1000MΩ/500V/min

Working temperature

Ta

-25℃ ~ +65℃

Storage temperature

Ts

-40℃ ~ +80℃

Working frequency

f

50Hz ~60Hz

Relative Humidity

－

<90%

Enclosure material

－

Fire retardation PBT/Fire retardation ABS

Product Features

Sealing with epoxy resin, excellent antivibration capability.

Flexible installation modes, wide overload range.

High precision, excellent consistency. Can be used to output voltage or output current .

Product Application

Applicable to motor protection, soft starting and monitoring high current, etc.

Main specifications

Input

Output

Load

Precision

Phase difference

Overload multiple

10A

0.11V(5mA)

---

0.2

<10ˊ

10

20A

0.17V(10mA)

---

0.2

<10ˊ

10

50A

0.35V(50mA)

---

0.2

<10ˊ

10

80A

0.5V(40mA)

---

0.2

<10ˊ

10

100A

0.17V(50mA)

---

0.2

<10ˊ

10

120A

0.17V(40mA)

---

0.2

<10ˊ

10

150A

0.17V(50mA)

---

0.2

<10ˊ

10

180A

0.17V(100mA)

---

0.2

<10ˊ

10

200A

0.35V(100mA)

---

0.2

<10ˊ

10

Precautions

 During use, output type may be the output type with lead wire or the output with connector.
