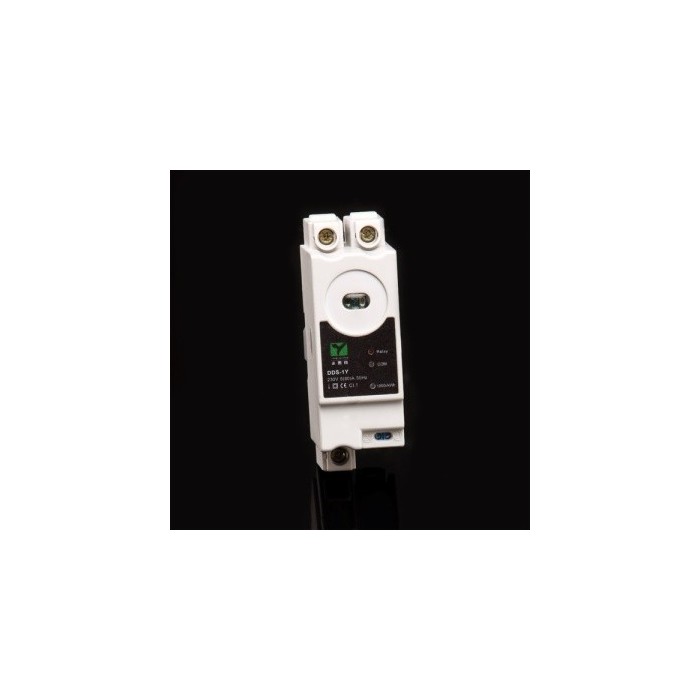

D119007 Single Phase Two Wire DIN-Rail Meter
- View full size
Home > D119007 Single Phase Two Wire DIN-Rail Meter
D119007 is a single-phase two module smart meter. It has 100A relay. D119007 could measure active energy, apparent energy, reactive energy, power factor, etc. The three LEDs means: kWh, communication indication, relay indication.
♦RS485(IEC62056-21), IR communication
♦Relay
Main Specification:
| Voltage: | 220V/230V/240V |
| Frequency: | 50Hz/60Hz |
| Max. Current: | 100A |
| Constant: | 1000imp/kwh |
| Connection mode: | Direct mode |
| Meter Size: | 136.8*45.92*88mm |
| Installation Size: | Comply with DIN EN 50022 standard |
| Standard: | IEC62052-11, IEC62053-21 |
