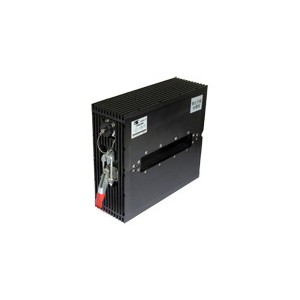

CHB-1KC 2KC、3KC Closed-loop Hall Current Transducer

Description

The SENSOR Module CHB-1KC, 2KC, 3KC is a closed loop Hall current sensor to measure1000A…3000A DC, AC or pulsed currents with a galvanic isolation between the primary and secondary circuits. The aperture can be opened by a structure of a split core for easy installation.

Closed-loop Hall Current Sensor:

Type

Nominal current

Output current

Accuracy

Supply voltage

Aperture

I_N（A）

I_M（mA）

X（%）

Vc（V）

mm

CHB-1KC

CHB-2KC

1000

2000

200

400

±0.4%

±0.4%

±24

±24

30X155

30X155

CHB-3KC

3000

600

±0.4%

±24

30X155

Specifications:

Principle

Closed loop Hall effect principle

Input current

1000A…3000A（DC、AC、Pulsed current）

Output current

200mA/  400mA/600mA

Turns ratio

1:5000

Frequency

DC~20KHz

Accuracy

±0.4%

Response time

<1μS

Linearity

<0.1%

Supply voltage

±24（±5%）

Consumption

60mA+I_M（Output current）

Isolation voltage

Between primary and secondary circuit: 6KV RMS/50Hz/1min.

Operating temp.

-25 …+70℃

Applications

The sensors are used in the industry field of power supplies, welding machines, converters,

industry auto-control, motor drives, electronic power system, railways, rectifiers systems etc.

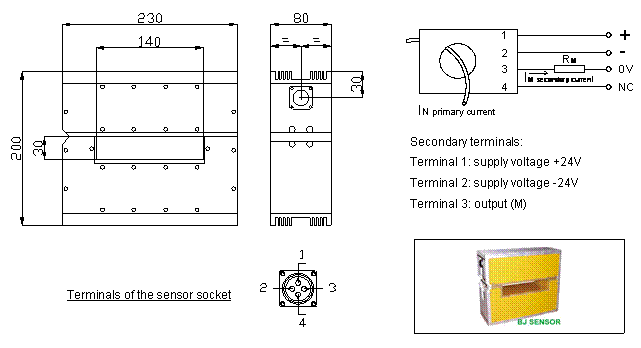

Dimensions(mm) & Connection:
