Application scope

1.Instead of low voltage motor thermal relay

2.Industrial motor operating control

3.Industrial motor protection

4.Industrial power operation monitoring

5.Motor management system

6.Suitable for 660V below the voltage level three-phase motor protection

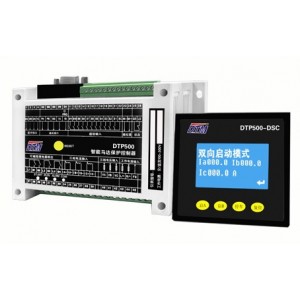

The main function of DTP500 series products

◆Has the start overtime protection, overload protection, broken phase protection, grounding protection, over-current plugging turn protection, current imbalance protection, short circuit protection, and increased leakage protection type explosive-proof motor overheating, carrying full protection (tE time protecting), owe load protection, temperature protection, voltage protection, over-voltage protection, owe power factor protection, such as the protection of sequence of digital protection function.

◆Accurate overheating protection digital models from eye principle solved motor thermal protection problems.

◆Te time protection accord with relevant increase Ann type explosion-proof motors overload protection regulations (GB3836.3-2000)

◆Realize the three-phase motor loop three, grounding/leakage current, current imbalance rate, three-phase line voltage, frequency and power factor, active power, reactive power, meritorious electric degrees and so on many kinds of electricity parameter measurement.

◆Meet directly startup, two-way startup, star/triangle startup, since the start of decoupling transformer start-up manner.

◆Controller this lift up 11 road switch input for start-stop signals, reset signal and contactor status signal input.

◆Controller provides no.5 relay output used for various start-up mode control, provide the number four programmable relay output.

◆Can provide 1 road to DCS 4 ~ 20mA analog output.

◆8 times fault record

◆Supported Modbus or Profibus communications bus.

◆Resistance to sway electricity function 10s, guarantee the sustainable power electrical phenomena does not affect the short-time sway the continuity of production process.

◆Owe pressure heavy start function in electric machine Lord circuit after short outage according to the parameter Settings realize time delay activated.

◆Support nine kinds of operation mode: protection mode, direct start-up mode, two-way reversible start-up mode, star/triangle start two relays mode, star/triangle startup three relays open-loop mode, star/triangle startup three relays closed-loop mode, self coupling transformer start two relays mode, self coupling transformer startup three relays open-loop mode, self coupling transformer startup three relays closed-loop mode. Operation mode Settings can be extended module or communication software Settings.

◆Motor provides the segmented protection, points the start-up process and operation process to motor to protect. During the start-up process protection, broken into start overtime in protection, current imbalance protection, grounding/leakage protection, short circuit protection, tE time protection function, after the start-up process other ecoenvironrnental protection.

◆Optional display module, can offer various site modify functions.

◆1B on-site can display 1A, 10, fever, 1C, state equivalence.
