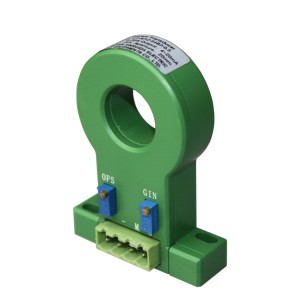

*Electromagnetic modulation principle, transforms the measured DC micro current into the standard DC voltage output according to the linear proportion
*Controlled by temperature compensation circuit, small thermal drift measure accurately
*Perforation, plug terminal insert，screw fastening plane mounting
*It widely applies to the branch way power supply of the isolation online detection in DC power supply system
*Dimension(mm): 53(L)×21(W)×72(H） aperture: 20mm

Specification：

*Input Range：0~±100mA can choose 0~±10mA, 0~±20mA etc

*Accuracy Grade：≤1.0%.F.S

*Linearity Degree：better than 0.2%

*Response Time:≤200ms

*Offset Voltage:≤20mV

*Temperature Characteristics:≤150PPM/℃(0~50℃)

*Power Consumption:≤30 mA

*Isolation Withstanding Voltage: AC2.0KV/min*1mA between input /output/ power

*Load Capacity：2 times current continuous, 30 times current 1 second

*Flame Retardancy:UL94-V0

*Working Environment:-10℃~50℃，20%~90% without condensation

*Storage Environment:-40℃~70℃，20%~95% without condensation

Model：

Dimension：

Connection:
