Production Description

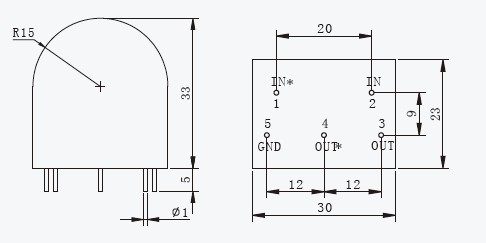

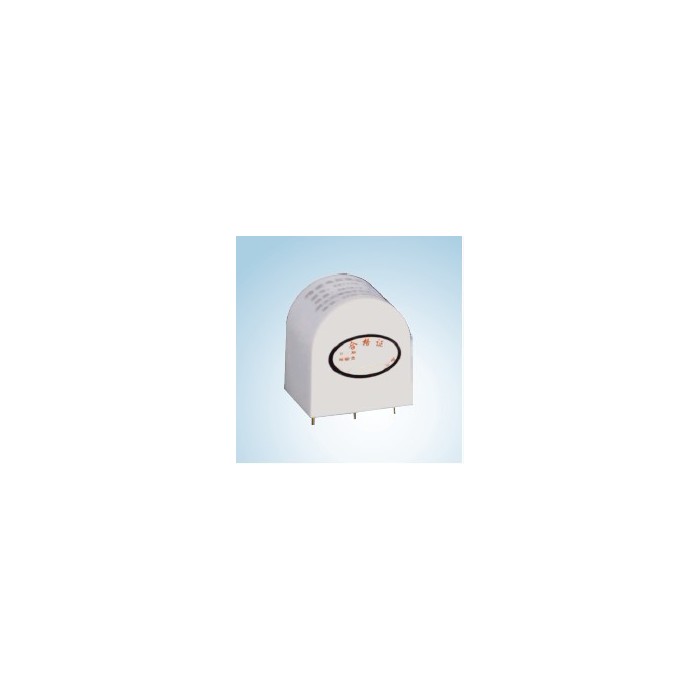

Voltage output type voltage converter used for protection.

Performance Indicators

Parameter

Symbol

Indicator

Rated Inputvoltage

Vn

0~380V

Secondary output

VO

0~10V

Precision level

ρ

0.1 level

Maximum overload multiple

－

2times

Phase difference of the rated site

δ

0ˊ~10ˊ

Withstand voltage

Vd

3000V/min

Dielectric strength

－

1000MΩ/500V/min

Working temperature

Ta

-25℃ ~ +65℃

Storage temperature

Ts

-40℃ ~ +80℃

Working frequency

f

45Hz ~1250Hz

Relative Humidity

－

<90%

Enclosure material

－

Fire retardation PBT/Fire retardation ABS

Product Features

   Excellent linearity, high precision, wide working range.

   No resistor at the primary side with voltage directly inputted and voltage outputted directly by the secondary side.

   Simple circuit, the external working power supply is not necessary, reliable run.

Product Application

Main specifications

Rated Input

Output

No-load  current

Precision

Angular difference

Overload multiple of inpute voltage

57.7V

3.53V

<0.5mA

0.1

<10ˊ

1.2

100V

2.88V

<0.5mA

0.1

<10ˊ

1.5

100V

3.53V

<0.5mA

0.1

<10ˊ

1.5

100V

7.07V

<0.5mA

0.1

<10ˊ

1.5

110V

3.53V

<0.5mA

0.1

<10ˊ

1.5

120V

7.07V

<0.5mA

0.1

<10ˊ

1.2

200V

3.53V

<0.5mA

0.1

<10ˊ

1.2

300V

5V

<2mA

0.1

<10ˊ

1.2

450V

7.07V

<2mA

0.1

<10ˊ

1.2

Remarks

Above specifications are stock, also, they can be designed based on customers requirements.
