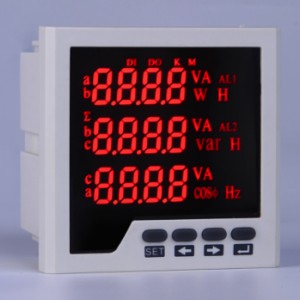

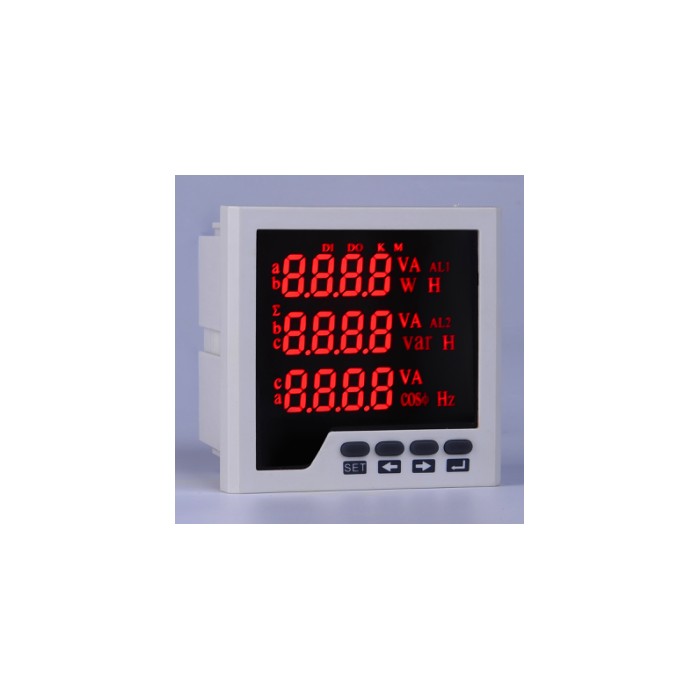

ME232 Power Quality Analyzer

Specification

Model

ME232

Product component type

Basic power meter

Poles description

3PH4W  3PH3W

Device application

Energy meter

Input type

External Rogowski coil

Display

LED

Mounting mode

Panel mounting

Mechanical characteristics

Weight

350g

Dimension

L*W*D:96*96*85mm

Instantaneous rms Values

Phase Voltage

Ua,Ub,Uc

Line Voltage

Uab,Ubc,Uca

Current

Ia,Ib,Ic

Active Power,Reactive power,power factor

Three phase Total

Frequency

Avg

Export active energy

Three phase Total

Import active energy

Three phase Total

Export reactive energy

Three phase Total

Import reactive energy

Three phase Total

Update rate

Data acquisition rate

300ms

Display update rate

1s

Measurement accuracy

Current

0.5% from 10% to 120%(don’t ensure accuracy when <10A)

Rated current

100A,500A,1000A,3000A,6300A

Rogwoski coil specification

85mV/kA@50Hz±0.5%

Voltage

0.5% from 80V to 400V

Power factor

±0.005 from 10% to 120%

Active/Apparent Power

IEC62053-22 Class 0.5

Reactive power

IEC62053-21 Class 2

Frequency

0.5% from 45 to 65Hz

Active energy

IEC62053-22 Class 0.5s

Reactive energy

IEC62053-21 Class 2

Measurement arrange

Measured voltage

80V to 400V AC(or 100 to 500V)

Frequency range

50/60Hz

Control Power

AC/DC

 85 to 265V AC/DC, 3.5W

Output

Digital output

1×digital output(2 ports) from 1pcs relay RATED AC 250V/3A,DC 30V/3A

Wire diameter for terminals

Connections-terminals

Screw terminals 2.5mm²,interval 5.08mm
